Albatross 40 Panoramic

The Albatross 40 ´Panoramic’ is designed to provide more comfort for cruising sailors, families and charter companies.

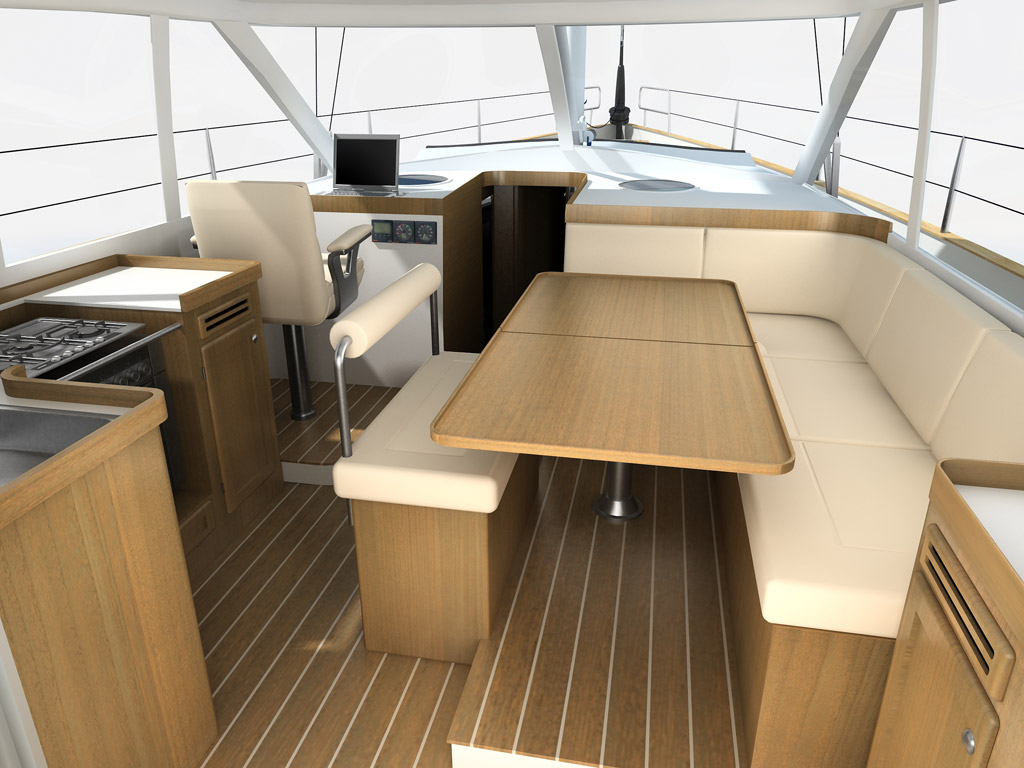

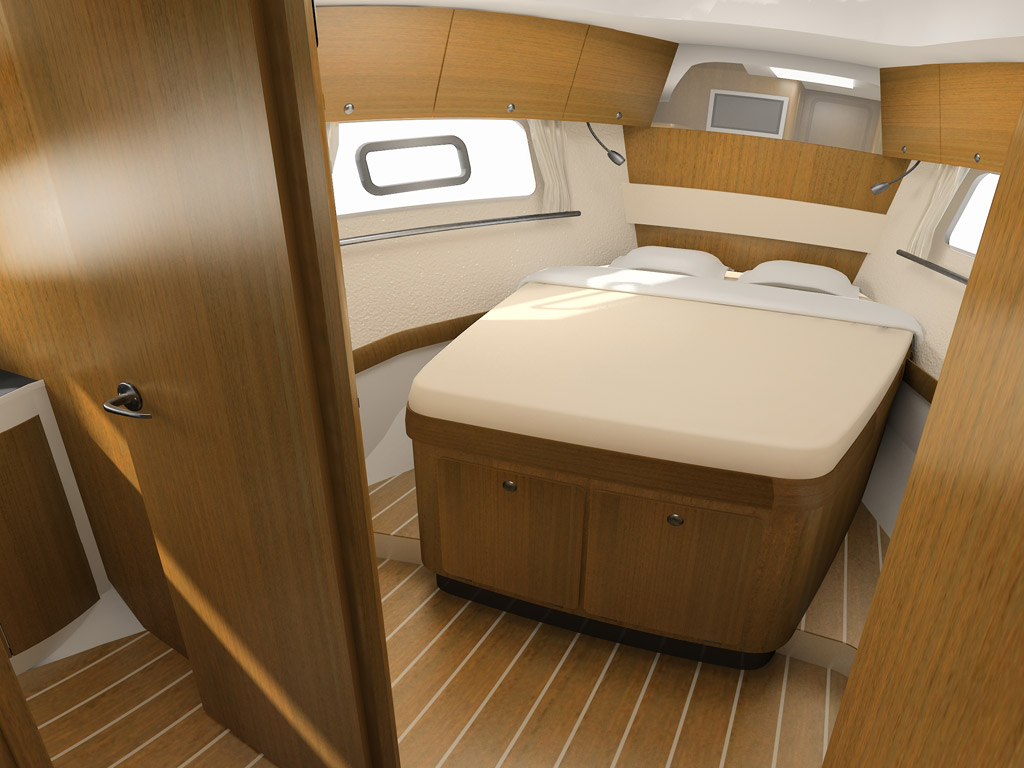

The philosophy behind the design stems from a deck level panoramic saloon linking better the cockpit and saloon area as one, a design feature not normally typical on yachts of this size and more alike to larger yacht arrangements. The advantage of this arrangement includes large comfortable guest cabins below deck, a deck level saloon with panoramic views offering protection from the elements and a good navigation area, a separate engine room and a huge amount of lazarette stowage.

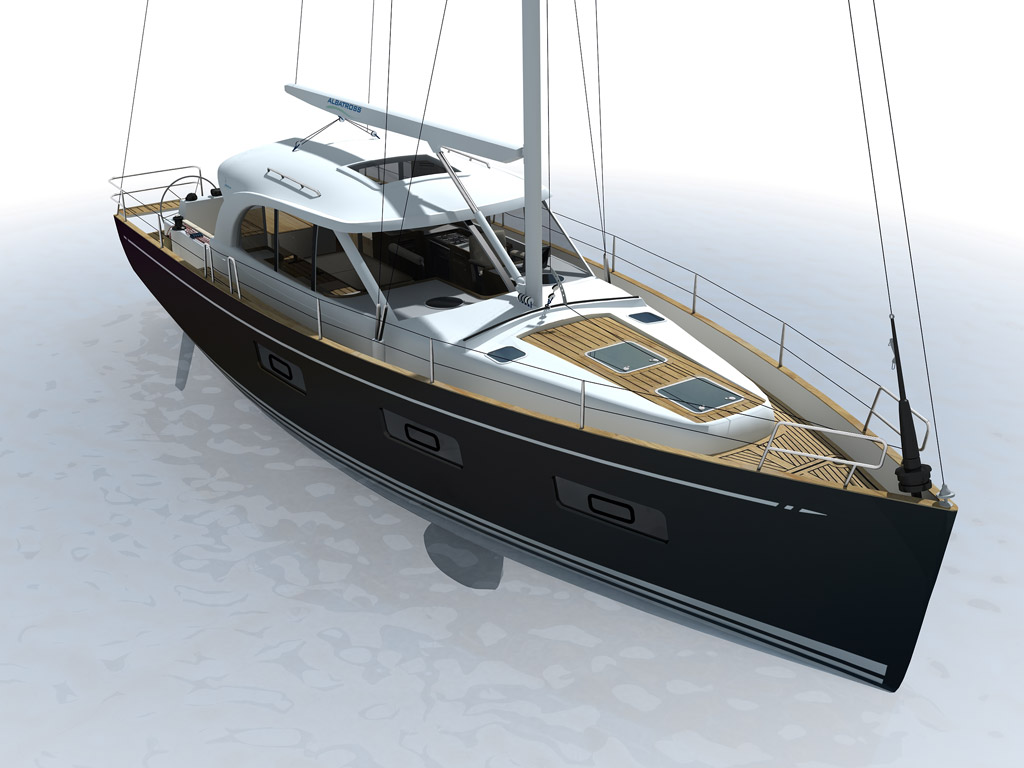

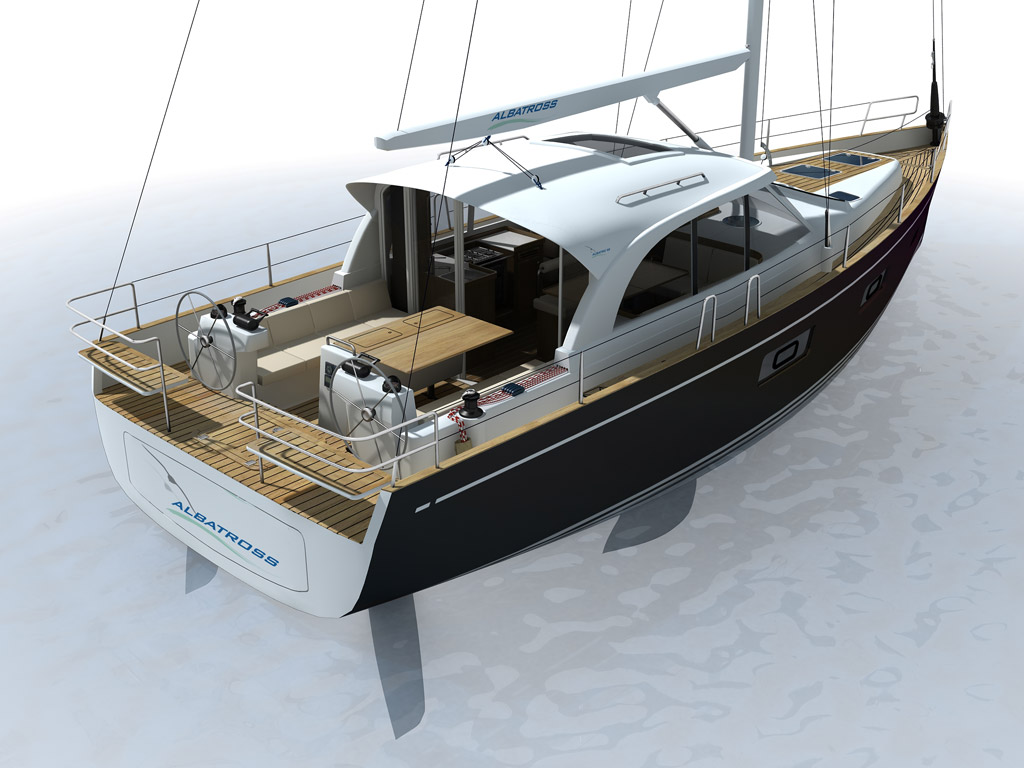

On deck, the yacht is designed with 2 comfortable helm positions aft, a large protected cockpit area for guests and a foredeck solarium. Access around the yacht is comfortable and protected with low bulwarks and stanchions offering good security for all onboard. In addition, cluttering of the deck with a tender or davits is eliminated with the transom tender garage, a detail not commonly found on 40’ yachts.

Intended as a cruising yacht, early investigations indicate a comfortable yacht with good all-round performance. Fitted with twin rudders, the yacht will maintain good control even when in a blow and adventurous seas. Under engine, the Albatross 40 is designed for a comfortable cruising speed of 8 knots.

In summary, a comfortable cruising sailing yacht with many interior options, sleeping up to 8 and offering a good platform for cruising or chartering.

  • LOA: 12,00 m
  • Bmax: 4,00 m
  • Displacement: 9700 Kg
  • Draft: 2,00 m
  • Ballast: 3190 Kg
  • Upwind SA: 78.00 2
  • Mainsail: 45,10 m2
  • Genoa: 100,00 m2
  • Gennaker: 32,90 m2
  • Powering: 55-75 Hp
  • Fuel: 215 L
  • Fresh Water: 400 L
  • Grey / Black Water: 90 L
  • Construction: GRP
  • Classification: A
  • Link: www.albatrossyachts.eu

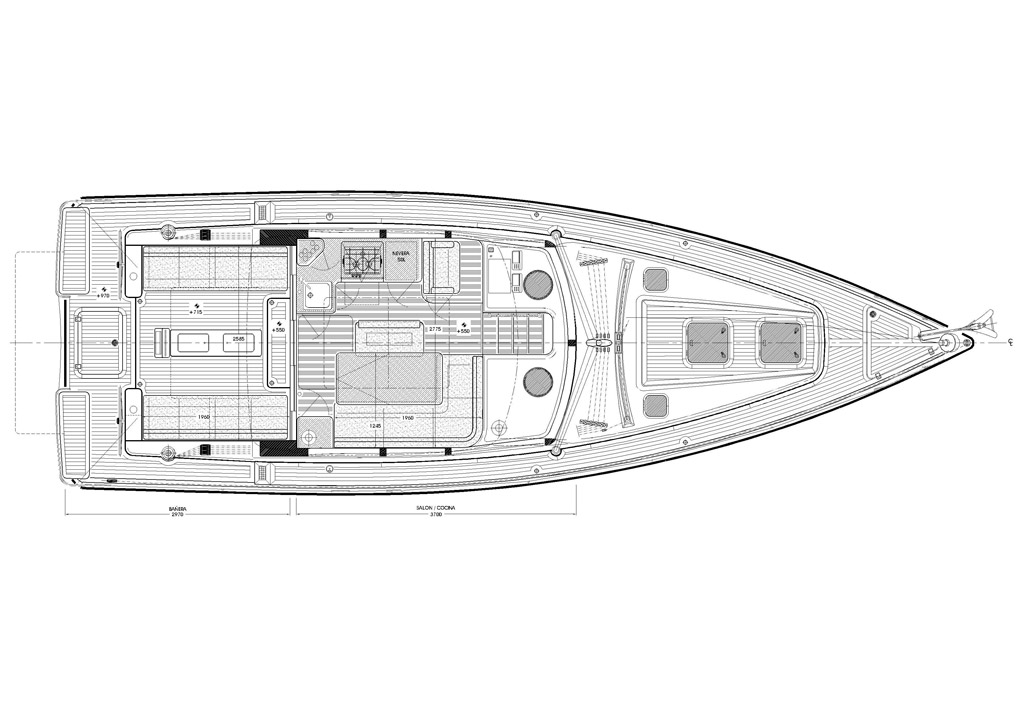

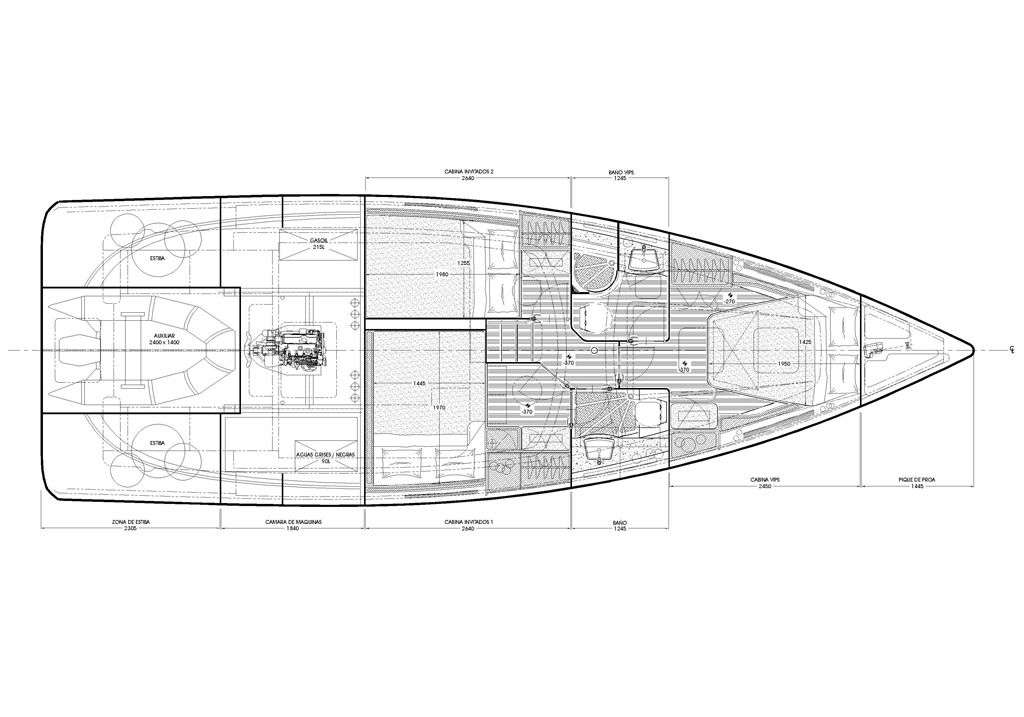

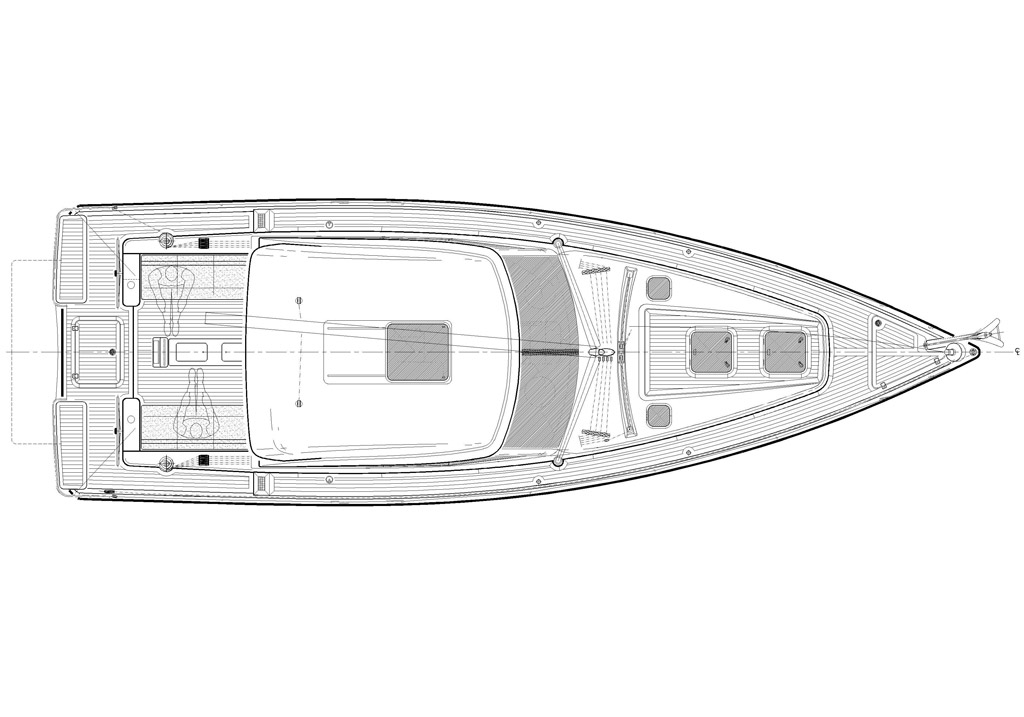

General Arrangement
