HYDRA 580

Intended for kit building, this 5,8m trailable sailing yacht will be ideal for day & weekend sailing. With a swing keel this yacht will offer excellent access to the shallowest of bays & rivers. Designed for easy construction, the hull will be built from cedar strips or ply strip diagonals laid up over ply bulkheads and internals. The deck, coach roof and interior will also be of plywood construction.

  • LOA: 5,79 m
  • Bmax: 2,00 m
  • Displacement: 580 Kg
  • Draft: 1,00 m
  • Ballast: 115 Kg
  • Mainsail: 7,9 m2
  • Genoa: 7,9 m2
  • Powering: 4 Hp

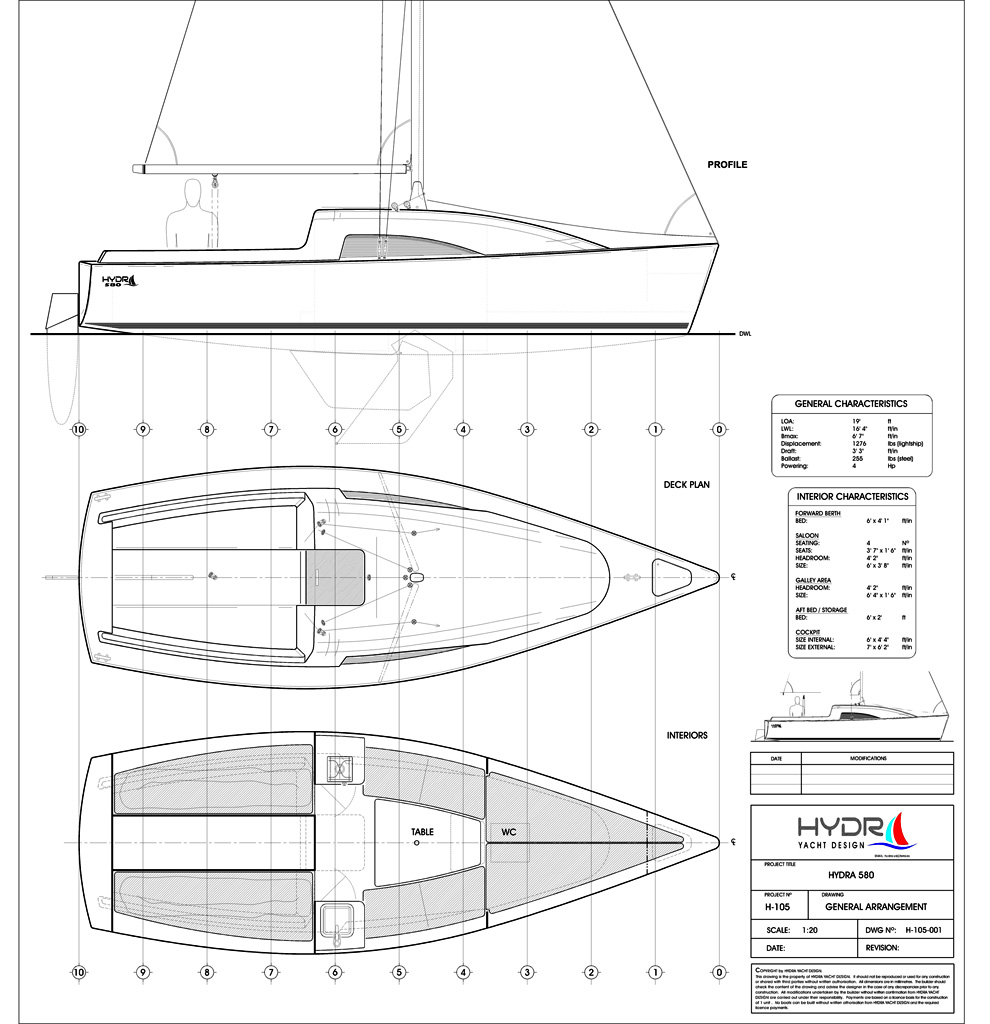

General Arrangement
